2.0A單通道限流電源開關 DIODES AP2301
- 品牌：???DIODES
- 型號：???AP2301
Description
The AP2301 and AP2311 are single channel current-limited integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devicescomplies with USB standards and is available with both polarities of Enable input.
The devices have fast short-circuit response time for improved overall system robustness, and have integrated output discharge function to ensure completely controlled discharging of the output voltage capacitor. They provide a complete protection solution for applications subject to heavy capacitive loads and the prospect of short circuit,and offer reverse current blocking, over-current, over-temperature and short-circuit protection, as well as controlled rise time and undervoltage lockout functionality. A 7ms deglitch capability on the opendrain Flag output prevents false over-current reporting and does notrequire any external components.
All devices are available in SO-8, MSOP-8, MSOP-8EP, U-DFN3030-8 (Type E) and U-DFN2020-6 packages.
Features
? Single Channel Current-limited Power Switch
? Output Discharge Function
? Fast Short-circuit Response Time: 2μs
? 2.5A Accurate Current Limiting
? Reverse Current Blocking
? 70mΩ On-resistance
? Input Voltage Range: 2.7V to 5.5V
? Built-in Soft-start with 0.6ms Typical Rise Time
? Over-current and Thermal Protection
? Fault Report (FLG) with Blanking Time (7ms Typ)
? ESD Protection: 2kV HBM, 200V MM
? Ambient Temperature Range: -40°C to +85°C
? SO-8, MSOP-8, MSOP-8EP, U-DFN3030-8 (Type E) and U-DFN2020-6: Available in “Green” Molding Compound (No Br,Sb)
? Totally Lead-free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? UL Recognized, File Number E322375
? IEC60950-1 CB Scheme Certified

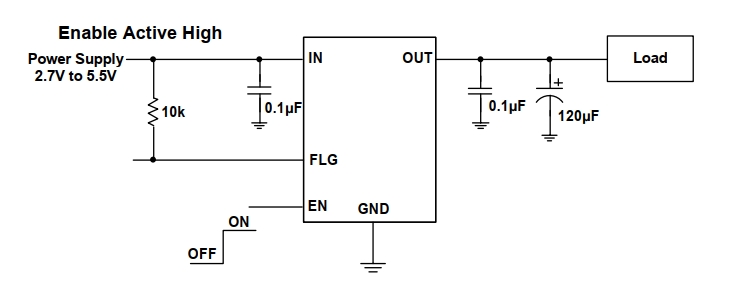

Applications
? LCD TVs & Monitors
? Set-Top-Boxes, Residential Gateways
? Laptops, Desktops, Servers, e-Readers, Printers, Docking
Stations, HUBs
