開環電流傳感器 森尼克SCK-SR050系列國產替代LEM萊姆 HLSR 40-P/SP33
更新：2022-1-13 22:14:47??????點擊：
- 品牌：???森尼克
- 型號：???HLSR 40-P/SP33&SCK-SR050系列
產品介紹
開環電流傳感器 森尼克SCK-SR050系列國產替代LEM萊姆 HLSR 40-P/SP33森尼克SCK-SR系列開環電流傳感器型號如下：
SCK-SR020BR，SCK-SR020BF，SCK-SR020UR，SCK-SR020UF，SCK-SR030BR，SCK-SR030BF，SCK-SR030UR，SCK-SR030UF，SCK-SR050BR，SCK-SR050BF，SCK-SR050UR，SCK-SR050UF完全國產替代美國LEM萊姆HLSR-P/SP33系列型號：HLSR 10-P/SP33，HLSR 20-P/SP33，HLSR 32-P/SP33，HLSR 40-P/SP33，HLSR 50-P/SP33；
主要市場應用：光伏、驅動、電源、可再生能源、焊接
SCK-SR Series current sensor module is for the electronic measurement of current:DC, AC, pulsed..., with galvanic separation between the primary and the secondary circuit. This small size, cost-effective product can also provide a variety of output modes.
? Open loop multi-range current transducer
? Voltage output
? Single supply +5 V
? Galvanic separation between primary and secondary
? Low power consumption

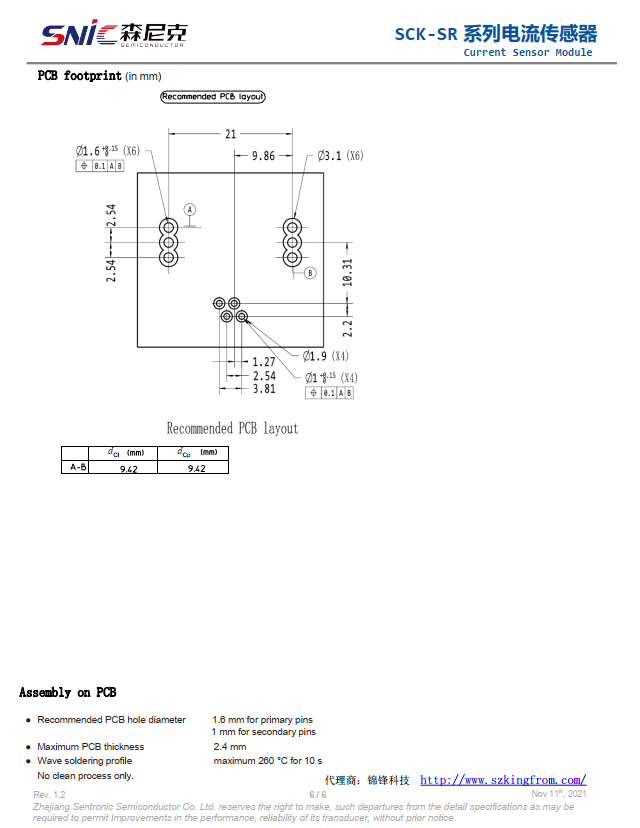

? Compact design for through-hole PCB mounting
? Factory calibrated
? High bandwidth, very low loss magnetic core.
? AC variable speed and servo motor drives
? Static converters for DC motor drives
? Battery supplied applications
? Uninterruptible Power Supplies (UPS)
? Switched Mode Power Supplies (SMPS)
? Power supplies for welding applications
? Combiner box
? MPPT
我司是森尼克正式授權代理商，可以提供技術支持，需要技術資料與樣品可以向我司業務人員索取（13923795851孫生-微信同號）；
