2.6V/2.5V雙運放并聯穩壓器LDO DIODES AP4300
- 品牌：???DIODES
- 型號：???AP4300
General Description
The AP4300 is a monolithic IC specifically designedto regulate the output current and voltage levels ofswitching battery chargers and power supplies.

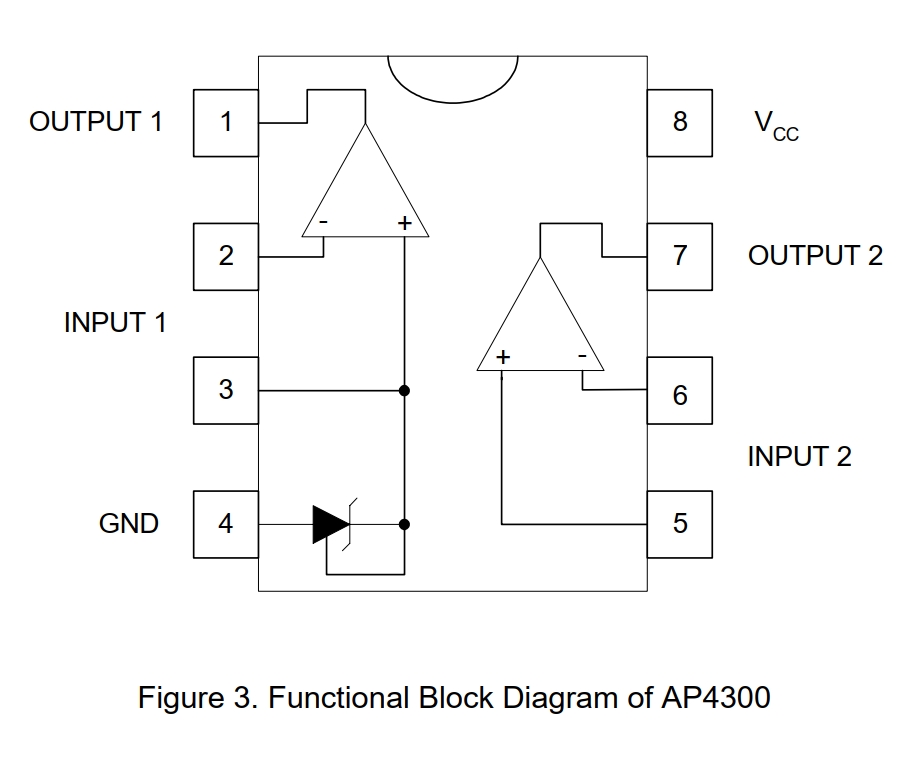

The device contains two operational amplifiers and aprecision shunt regulator. Op Amp 1 is designed forvoltage control, whose non-inverting input internally connects to the output of the shunt regulator. Op Amp 2 is for current control with both inputs uncommitted.
The IC offers the power converter designer a control solution that features increased precision with a corresponding reduction in system complexity and cost.
The AP4300 is available in standard packages of DIP-8 and SOIC-8.
Features
Op Amp
· Input Offset Voltage: 0.5mV
· Supply Current: 250μA per Op Amp at 5.0V Supply Voltage
· Unity Gain Bandwidth: 1MHz
· Output Voltage Swing: 0 to (VCC-1.5) V
· Power Supply Range: 3 to 18V
Voltage Reference
· Fixed Output Voltage Reference: 2.5V, 2.6V
· Voltage Tolerance: 0.5%, 1%
· Sink Current Capability from 0.1 to 80mA
Applications
· Battery Charger
· Switching Power Supply
