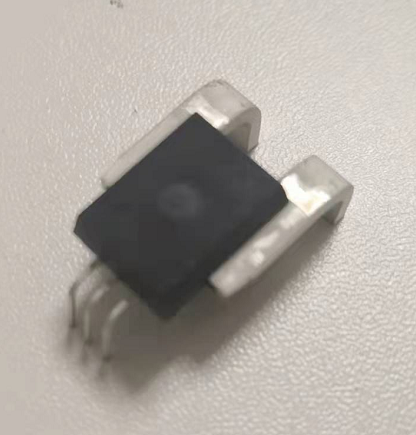

Allegromicro-ACS759 ACS759LCB-050B-PFF-T電流傳感器 國產電流傳感器SCT100BRSCT050BR
The Allegro?ACS759 family of current sensor ICs provides economical and precise solutions for AC or DC current sensing. Typical applications include motor control, load detection and management, power supply and DC-to-DC converter control, inverter control, and overcurrent fault detection.
The device consists of a precision, low-offset linear Hall circuit with a copper conduction path located near the die. Applied current flowing through this copper conduction path generates a magnetic field which the Hall IC converts into a proportional voltage. Device accuracy is optimized through the
close proximity of the magnetic signal to the Hall transducer. A precise, proportional output voltage is provided by the low-offset, chopper-stabilized BiCMOS Hall IC, which is programmed for accuracy at the factory.High-level immunity to current conductor dV/dt and stray electric fields, offered by Allegro proprietary integrated shield technology, for low output voltage ripple and low offset drift in high-side, high-voltage applications.The output of the device has a positive slope (>VCC/ 2) when an increasing current flows through the primary copper conduction path (from terminal 4 to terminal 5), which is the path used for current sampling. The internal resistance of this conductive path is 100 μ? typical, providing low power loss. The thickness of the copper conductor allows survival of the device at high overcurrent conditions. The terminals of the conductive path are electrically isolated from the signal leads
SCT050BR，SCT050BF，SCT050UR，SCT050UF，SCT100BR，SCT100BF，SCT100UR，SCT100UF，SCT150BR，SCT150BF，SCT150UR，SCT150UF，SCT200BR，SCT200BF，SCT200UR，SCT200UF對標替代 美國ALLEGRO電流傳感器有ACS758系列、ACS770系列、ACS756系列、ACS759系列、ACS772系列型號，ALLEGRO PIN TO PIN國產替代各型號如下
ACS758系列型號如下：ACS758LCB-050B-PFF-T，ACS758LCB-050U-PFF-T ，ACS758LCB-100B-PFF-T，ACS758LCB-100B-PSF-T ，ACS758LCB-100U-PFF-T ，ACS758KCB-150B-PFF-T ，ACS758KCB-150U-PSF-T ，ACS758KCB-150B-PSS-T ，ACS758KCB-150U-PFF-T ，ACS758ECB-200B-PFF-T，ACS758ECB-200B-PSF-T ，ACS758ECB-200U-PSF-T，ACS758ECB-200B-PSS-T，ACS758ECB-200U-PFF-T；
ACS770系列型號如下：
ACS770LCB-050B-PFF-T，ACS770LCB-050U-PFF-T，ACS770LCB-100B-PFF-T，ACS770LCB-100B-PSS-T，ACS770LCB-100U-PFF-T，ACS770LCB-100U-PSF-T，ACS770KCB-150B-PFF-T，ACS770KCB-150B-PSF-T，ACS770KCB-150B-PSS-T，ACS770KCB-150U-PFF-T ，ACS770KCB-150U-PSF-T，ACS770ECB-200B-PFF-T ，ACS770ECB-200B-PSF-T，ACS770ECB-200U-PFF-T ，ACS770ECB-200U-PSF-T；
ACS756系列型號如下：
ACS756SCA-050B-PFF-T，ACS756SCB-050B-PFF-T，ACS756SCA-100B-PFF-T，ACS756SCB-100B-PFF-T，ACS756SCB-100B-PSF-T，ACS756KCA-050B-PFF-T，ACS756KCB-050B-PFF-T；
ACS759系列型號如下：
ACS759LCB-050B-PFF-T，ACS759LCB-100B-PFF-T，ACS759KCB-150B-PFF-T，ACS759KCB-150B-PSS-T，ACS759ECB-200B-PFF-T，ACS759ECB-200B-PSS-T；
ACS772系列型號如下：
ACS772LCB-050U-PFF-T，ACS772LCB-050B-PFF-T，ACS772LCB-050B-PSS-T，ACS772LCB-100U-PFF-T，ACS772LCB-100B-PFF-T，ACS772KCB-150U-PFF-T，ACS772KCB-150B-PFF-T，ACS772ECB-200U-PFF-T，ACS772ECB-200B-PFF-T，ACS772ECB-250U-PFF-T，ACS772ECB-250U-PSF-T，ACS772ECB-250B-PFF-T，ACS772ECB-250B-PSF-T，ACS772ECB-300B-PFF-T，ACS772ECB-400B-PFF-T
? Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high-voltage applications
? Total output error improvement through gain and offset trim over temperature
? Small package size, with easy mounting capability
? Monolithic Hall IC for high reliability
? Ultralow power loss: 100 μ? internal conductor resistance
? Galvanic isolation allows use in economical, high-side
