SC2245、LTC2245、LTC2246 、LTC2247 、LTC2248 、LTC2249管腳配置及功能說明




SC2245替代LTC2245、LTC2246 、LTC2247 、LTC2248 、LTC2249
產品概況
SC2245 是一款 14 位 80/40/25/10MSps 低功耗 3V 電源供電的模數轉換器，專為數字化高頻寬動態范圍信號而設計。SC2245 非常適合要求苛刻的成像和通信應用，其交流性能，包括 80MHz采樣下 72.83dB 信噪比和 85dB 無雜散動態范圍，用于遠遠超過奈奎斯特頻率的信號。直流規格包括±1LSB INL（典型值），±0.25LSB DNL（典型值）和無漏失碼。輸入端參考噪聲很低，僅為0.96LSBRMS。一個單獨的輸出電源使輸出能驅動 0.5V 至 3.6V 邏輯電路.
一個單端 CLK 輸入負責控制轉換器運作。一個任選的時鐘占空比穩定器在全速和多種時鐘占空比條件下實現了高性能。




主要性能
? 3V 電源供電
? 靈活輸入范圍：1VP-P to 2VP-P
? 0.5V 至 3.3V 輸出電源
? 低功耗： 60mW (10MSPS)
218mW(80MSPS)
? 80MHz 采樣，30.5MHz 輸入：
信噪比(SNR):72.83dBFS
無雜散動態范圍(SFDR):85.62dBFS
? 微分非線性(DNL)：±0.25LSB(典型值)
? 輸入端參考噪聲：0.96LSBRMS
? 片內基準電壓源和采樣保持電路
? 兼容 ADI 的 LTC2249/2247/2246/2245
? QFN-32 封裝 5mm×5mm
應用場合
? 無線和有線寬帶通信
? 成像系統
? 光譜分析
? 便攜式儀器智能天線系統
? 手持式示波器
? 功能模塊示意圖：

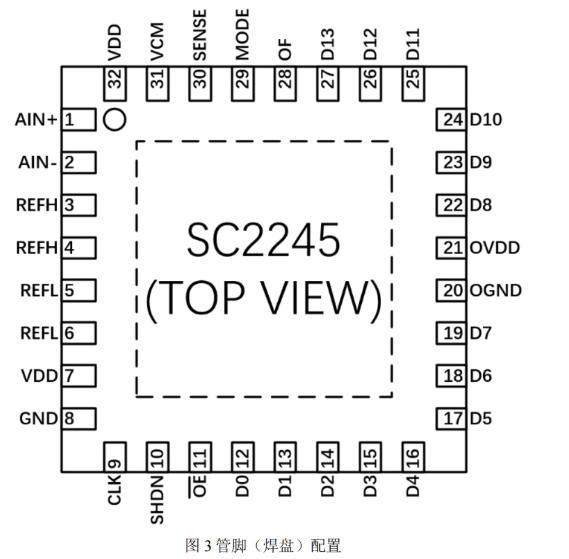

SC2245管腳配置及功能說明：




PART NUMBER DESCRIPTION COMMENTS
LTC1748 14-Bit, 80Msps, 5V ADC 76.3dB SNR, 90dB SFDR, 48-Pin TSSOP Package
LTC1750 14-Bit, 80Msps, 5V Wideband ADC Up to 500MHz IF Undersampling, 90dB SFDR
LT1993-2 High Speed Differential Op Amp 800MHz BW, 70dBc Distortion at 70MHz, 6dB Gain
LT1994 Low Noise, Low Distortion Fully Differential Low Distortion: –94dBc at 1MHz
Input/Output Amplifier/Driver
LTC2202 16-Bit, 10Msps, 3.3V ADC, Lowest Noise 150mW, 81.6dB SNR, 100dB SFDR, 48-Pin QFN
LTC2208 16-Bit, 130Msps, 3.3V ADC, LVDS Outputs 1250mW, 78dB SNR, 100dB SFDR, 64-Pin QFN
LTC2220-1 12-Bit, 185Msps, 3.3V ADC, LVDS Outputs 910mW, 67.7dB SNR, 80dB SFDR, 64-Pin QFN
LTC2224 12-Bit, 135Msps, 3.3V ADC, High IF Sampling 630mW, 67.6dB SNR, 84dB SFDR, 48-Pin QFN
LTC2225 12-Bit, 10Msps, 3V ADC, Lowest Power 60mW, 71.3dB SNR, 90dB SFDR, 32-Pin QFN
LTC2226 12-Bit, 25Msps, 3V ADC, Lowest Power 75mW, 71.4dB SNR, 90dB SFDR, 32-Pin QFN
LTC2227 12-Bit, 40Msps, 3V ADC, Lowest Power 120mW, 71.4dB SNR, 90dB SFDR, 32-Pin QFN
LTC2228 12-Bit, 65Msps, 3V ADC, Lowest Power 205mW, 71.3dB SNR, 90dB SFDR, 32-Pin QFN
LTC2229 12-Bit, 80Msps, 3V ADC, Lowest Power 211mW, 70.6dB SNR, 90dB SFDR, 32-Pin QFN
LTC2236 10-Bit, 25Msps, 3V ADC, Lowest Power 75mW, 61.8dB SNR, 85dB SFDR, 32-Pin QFN
LTC2237 10-Bit, 40Msps, 3V ADC, Lowest Power 120mW, 61.8dB SNR, 85dB SFDR, 32-Pin QFN
LTC2238 10-Bit, 65Msps, 3V ADC, Lowest Power 205mW, 61.8dB SNR, 85dB SFDR, 32-Pin QFN
LTC2239 10-Bit, 80Msps, 3V ADC, Lowest Power 211mW, 61.6dB SNR, 85dB SFDR, 32-Pin QFN
LTC2245 14-Bit, 10Msps, 3V ADC, Lowest Power 60mW, 74.4dB SNR, 90dB SFDR, 32-Pin QFN
LTC2246 14-Bit, 25Msps, 3V ADC, Lowest Power 75mW, 74.5dB SNR, 90dB SFDR, 32-Pin QFN
LTC2247 14-Bit, 40Msps, 3V ADC, Lowest Power 120mW, 74.4dB SNR, 90dB SFDR, 32-Pin QFN
LTC2248 14-Bit, 65Msps, 3V ADC, Lowest Power 205mW, 74.3dB SNR, 90dB SFDR, 32-Pin QFN
LTC2249 14-Bit, 80Msps, 3V ADC, Lowest Power 222mW, 73dB SNR, 90dB SFDR, 32-Pin QFN
LTC2250 10-Bit, 105Msps, 3V ADC, Lowest Power 320mW, 61.6dB SNR, 85dB SFDR, 32-Pin QFN
LTC2251 10-Bit, 125Msps, 3V ADC, Lowest Power 395mW, 61.6dB SNR, 85dB SFDR, 32-Pin QFN
LTC2252 12-Bit, 105Msps, 3V ADC, Lowest Power 320mW, 70.2dB SNR, 88dB SFDR, 32-Pin QFN
LTC2253 12-Bit, 125Msps, 3V ADC, Lowest Power 395mW, 70.2dB SNR, 88dB SFDR, 32-Pin QFN
LTC2254 14-Bit, 105Msps, 3V ADC, Lowest Power 320mW, 72.4dB SNR, 88dB SFDR, 32-Pin QFN
LTC2255 14-Bit, 125Msps, 3V ADC, Lowest Power 395mW, 72.5dB SNR, 88dB SFDR, 32-Pin QFN
LTC2284 14-Bit, Dual, 105Msps, 3V ADC, Low Crosstalk 540mW, 72.4dB SNR, 88dB SFDR, 64-Pin QFN
LT5512 DC-3GHz High Signal Level Downconverting Mixer DC to 3GHz, 21dBm IIP3, Integrated LO Buffer
LT5514 Ultralow Distortion IF Amplifier/ADC Driver 450MHz to 1dB BW, 47dB OIP3, Digital Gain Control
with Digitally Controlled Gain 10.5dB to 33dB in 1.5dB/Step
LT5515 1.5GHz to 2.5GHz Direct Conversion Quadrature Demodulator High IIP3: 20dBm at 1.9GHz,
Integrated LO Quadrature Generator
LT5516 800MHz to 1.5GHz Direct Conversion Quadrature Demodulator High IIP3: 21.5dBm at 900MHz,
Integrated LO Quadrature Generator
LT5517 40MHz to 900MHz Direct Conversion Quadrature Demodulator High IIP3: 21dBm at 800MHz,
Integrated LO Quadrature Generator
LT5522 600MHz to 2.7GHz High Linearity Downconverting Mixer 4.5V to 5.25V Supply, 25dBm IIP3 at 900MHz,
NF = 12.5dB, 50? Single-Ended RF and LO Ports
